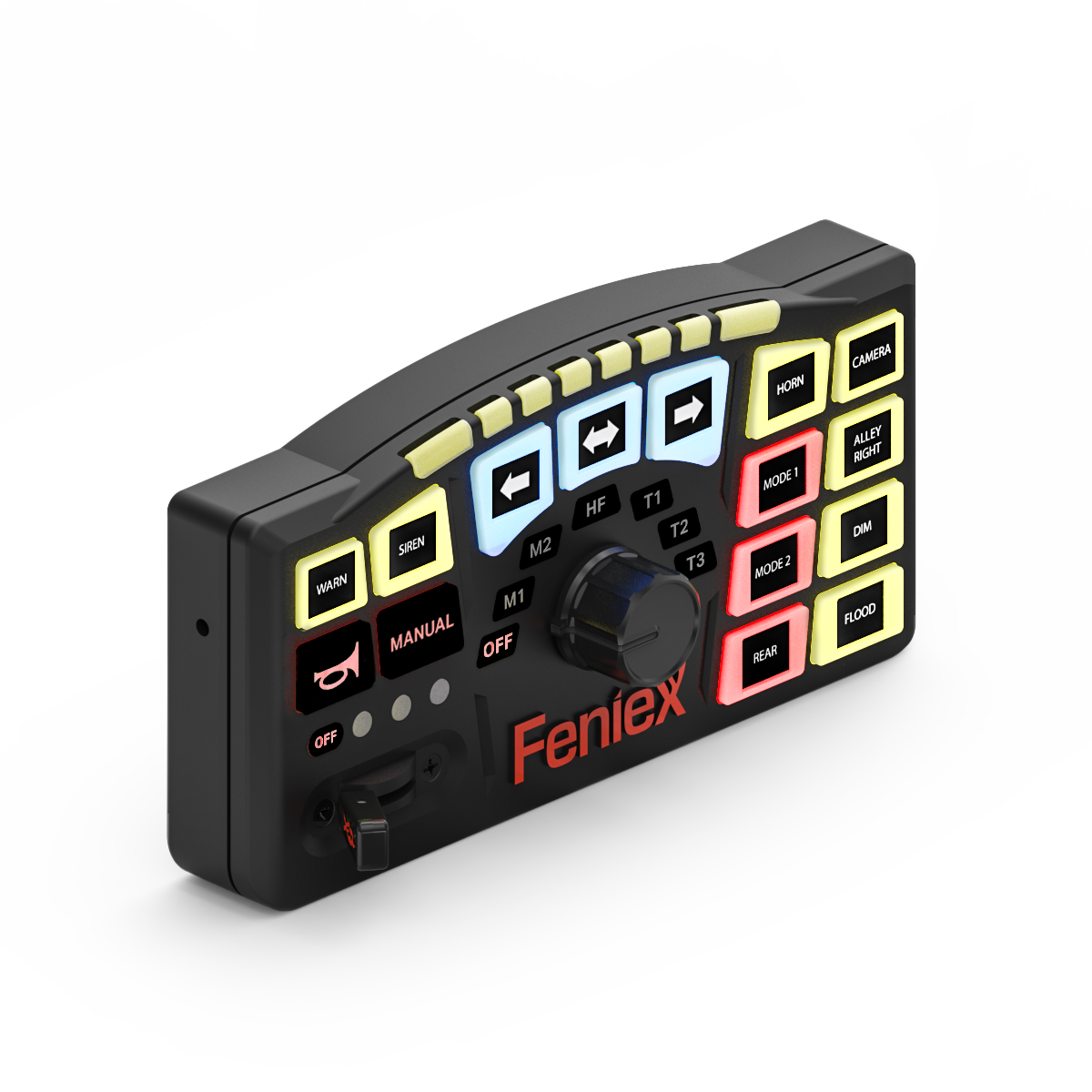

SynQ -R

FEATURES

• 13 Programmable Buttons

• 5 LED Button Color Options

• Standardized Button Size

• 4 Button Style Configurations: Timer, Toggle, Multi-Press, and Momentary

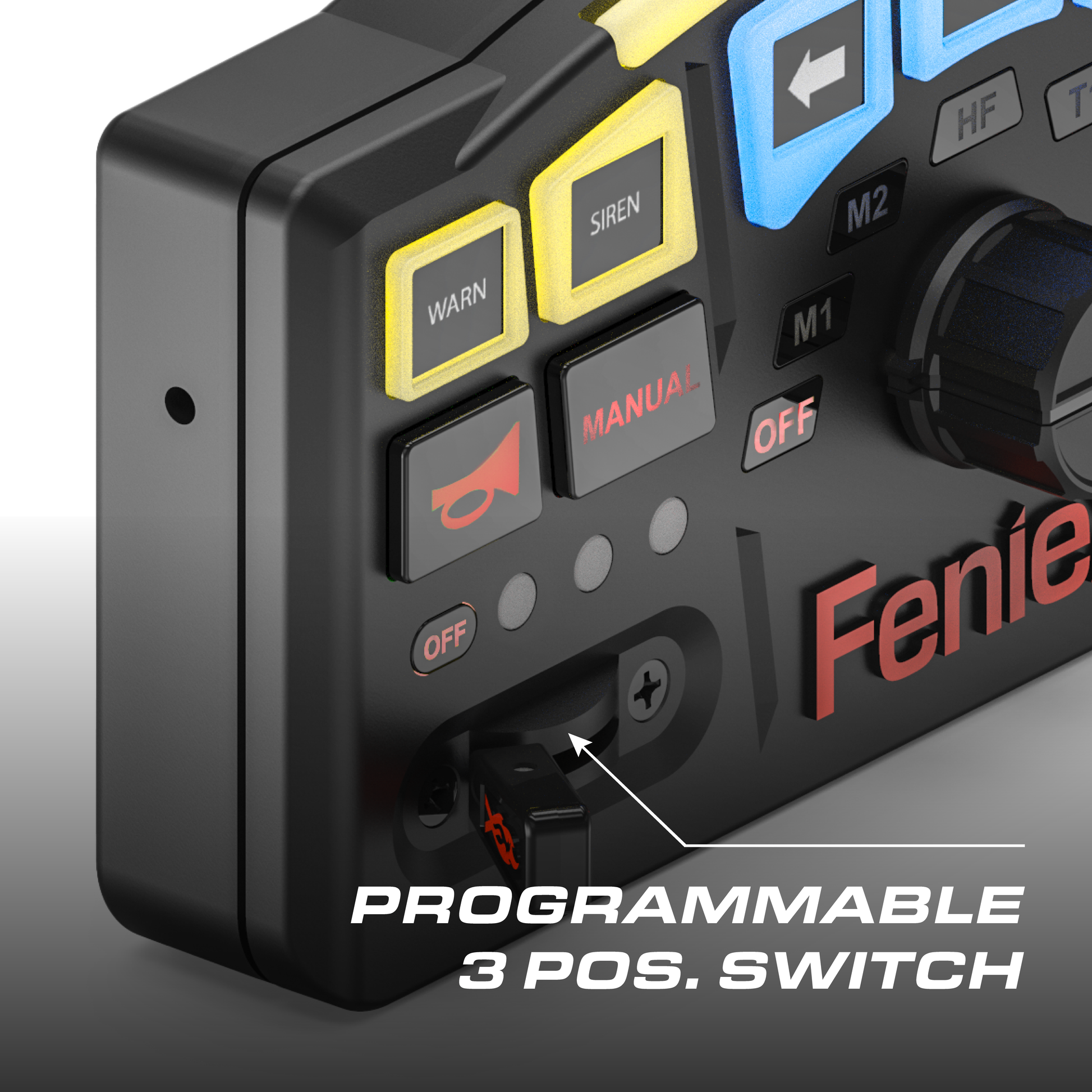

• 3 Position Slide Switch

• Aluminum Slide Switch Cap

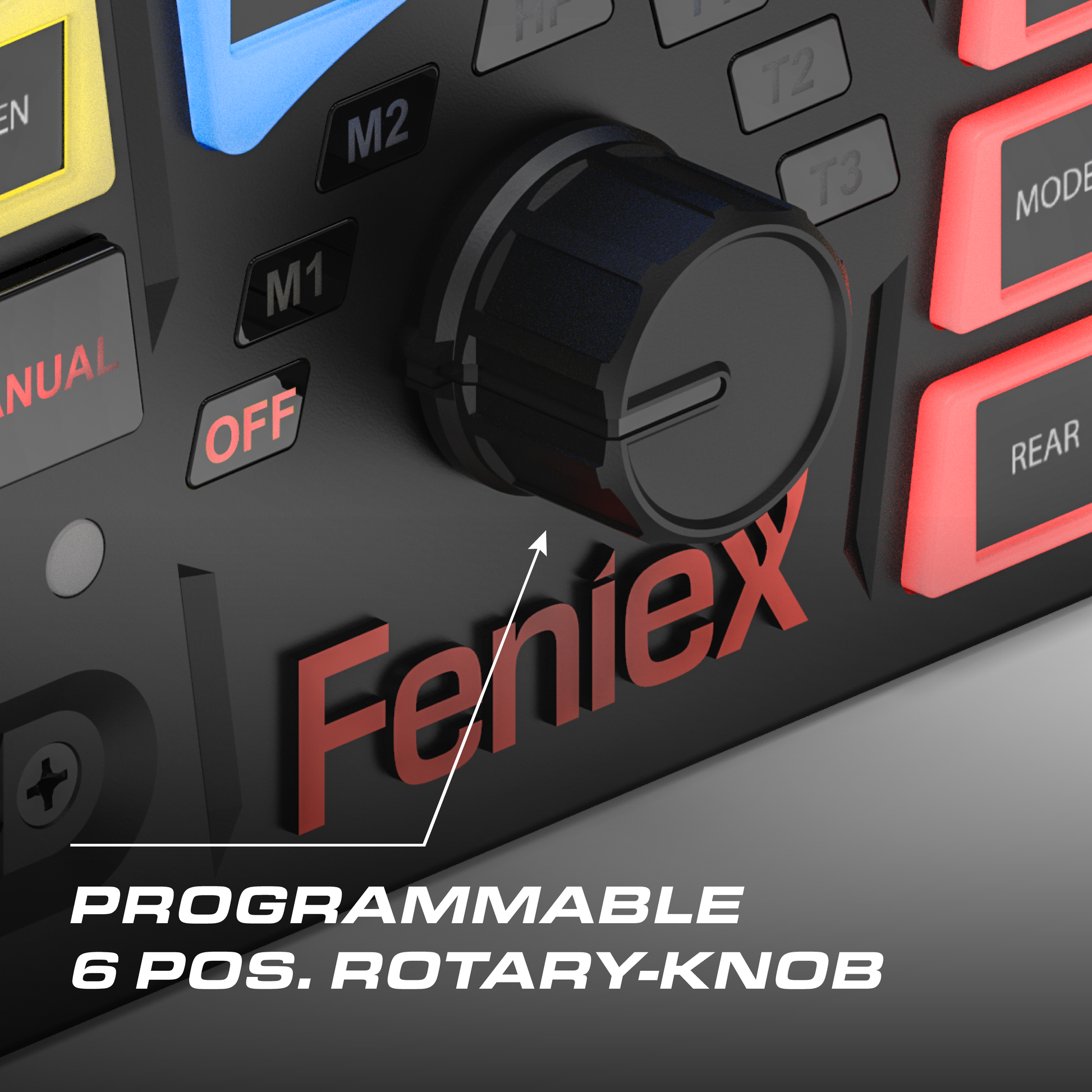

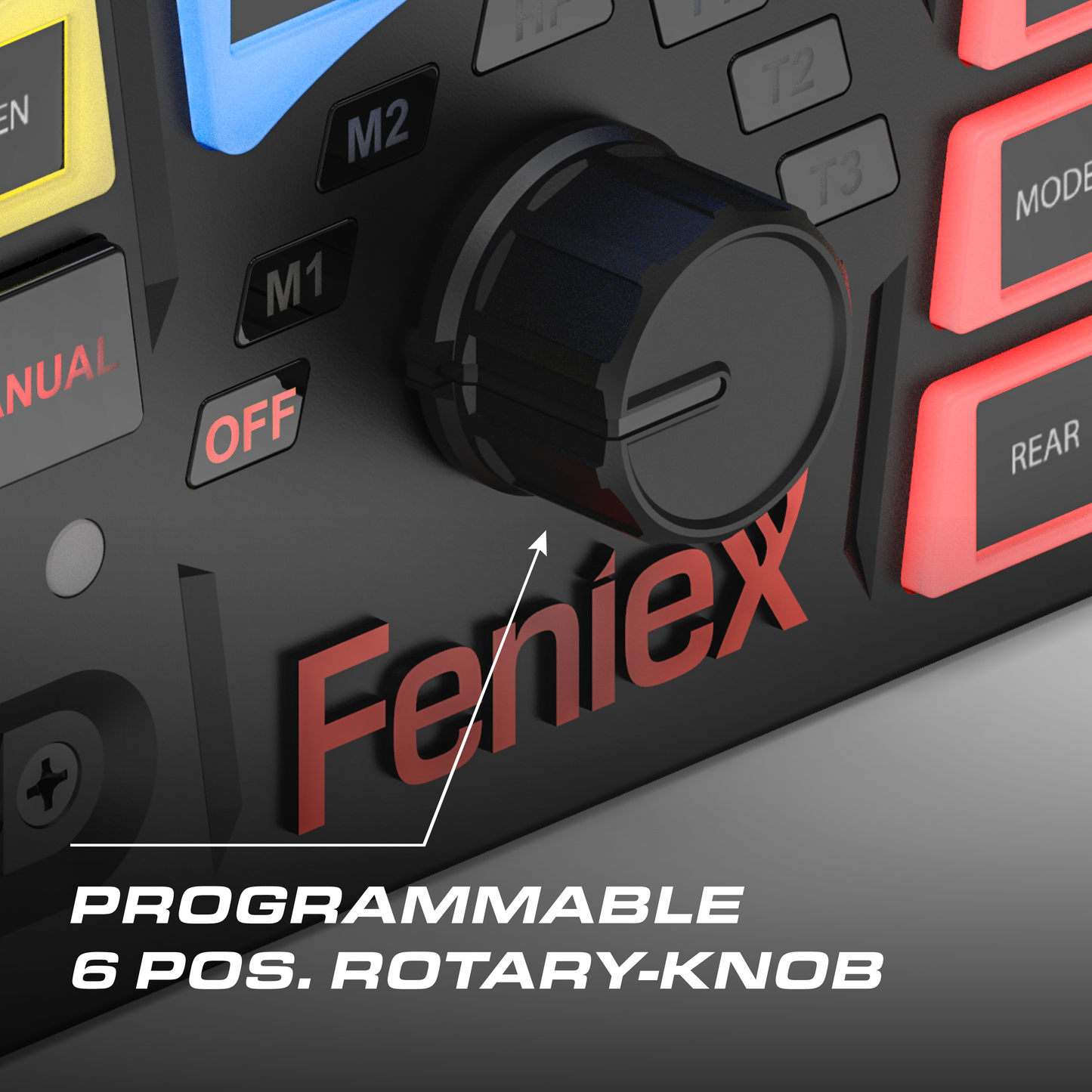

• 6 Position Rotary-Knob

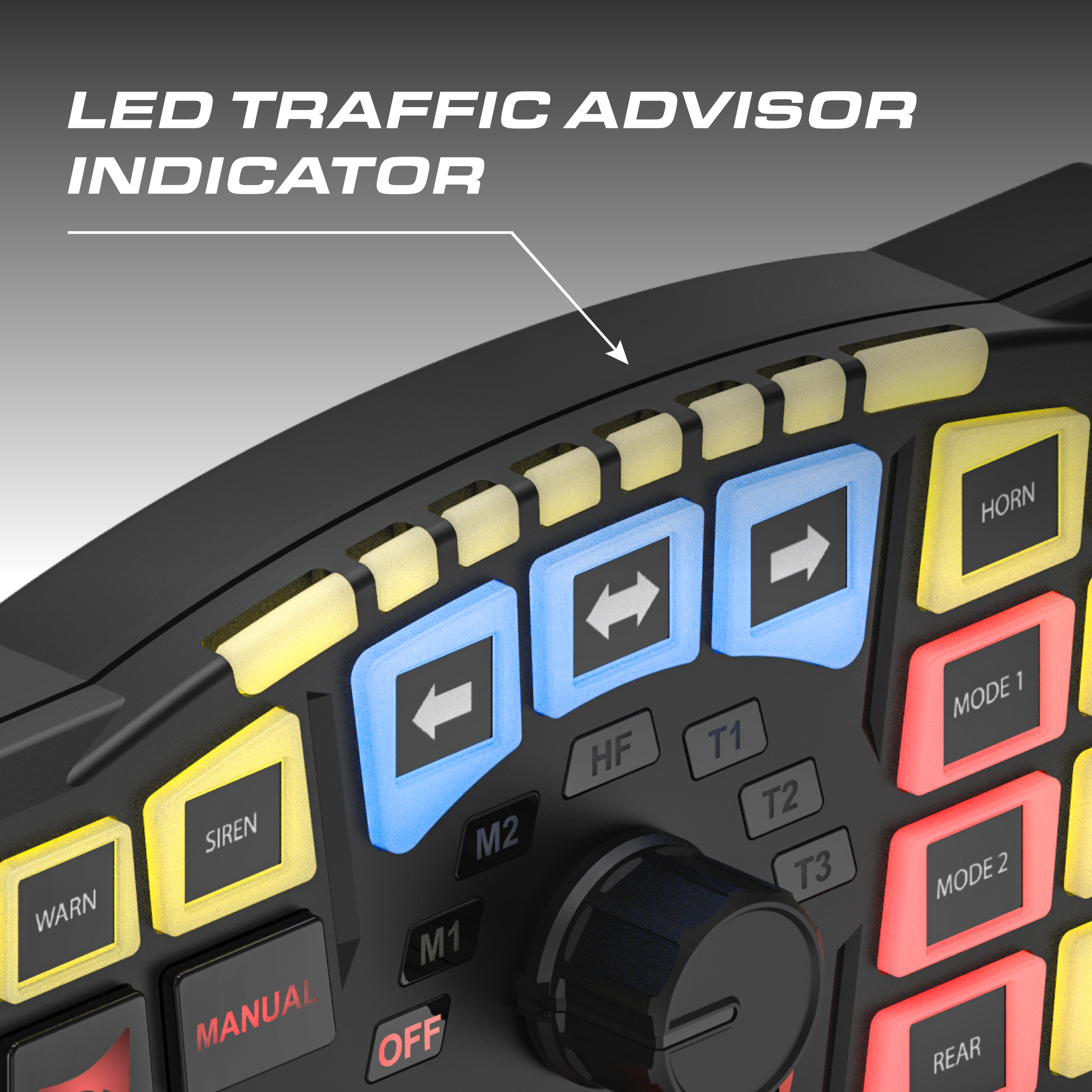

• 8 LED Programmable Traffic Advisor Indicators

• 15+ Programmable Siren Tones

• 20+ Audio Commands

• 200W Dual-Tone Siren

• Horn Ring, Park-Kill, Hands-Free, & Radio Rebroadcast

• PC Programmable

• Firmware Upgradable

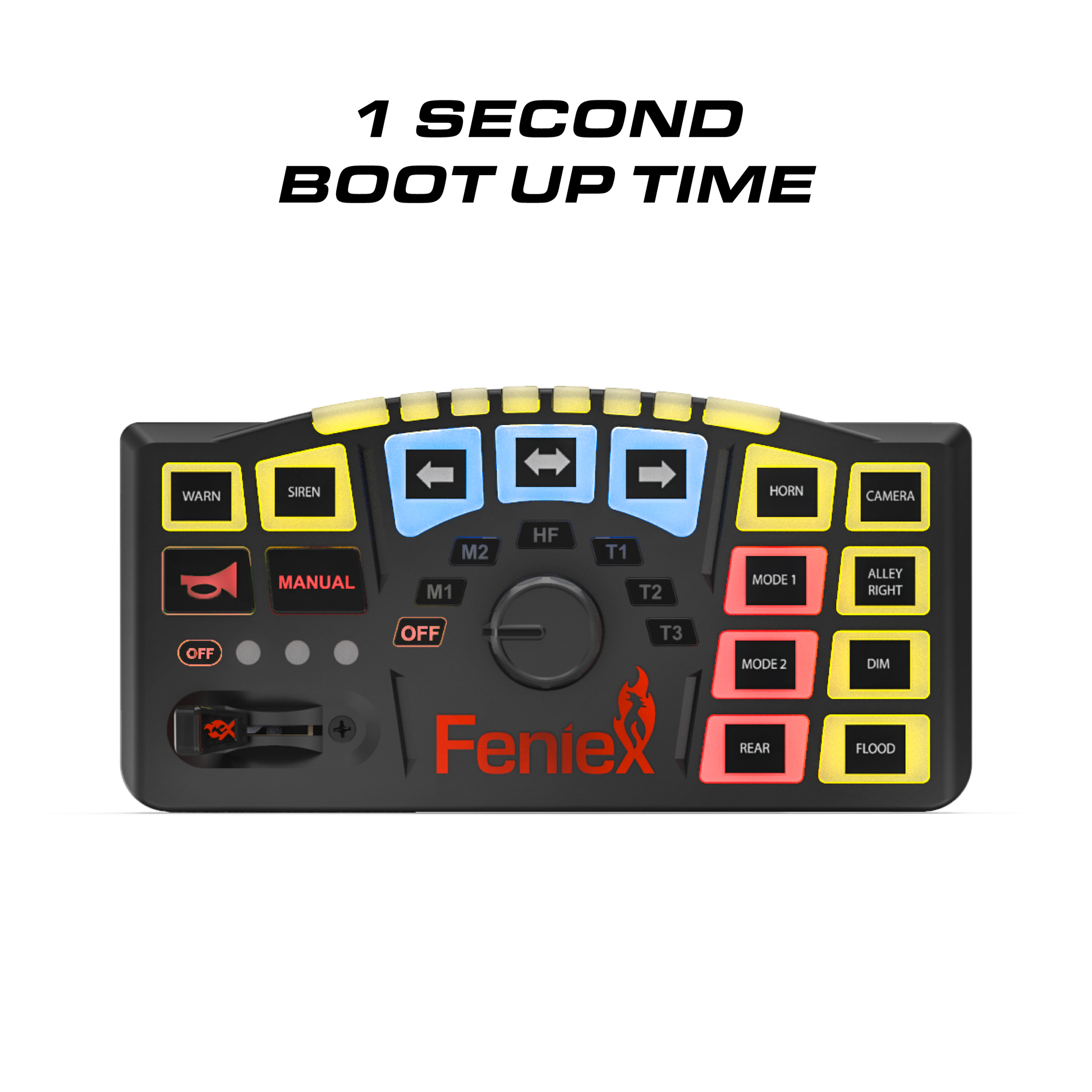

• 1 sec. Boot Up Time

• 12 Low Current Positive Outputs

• 6 High Current Positive Outputs

• 4 Low Current Ground Outputs

• 15ft Wire Harness From Controller to Relay

• 15ft PA Mic Cable Length

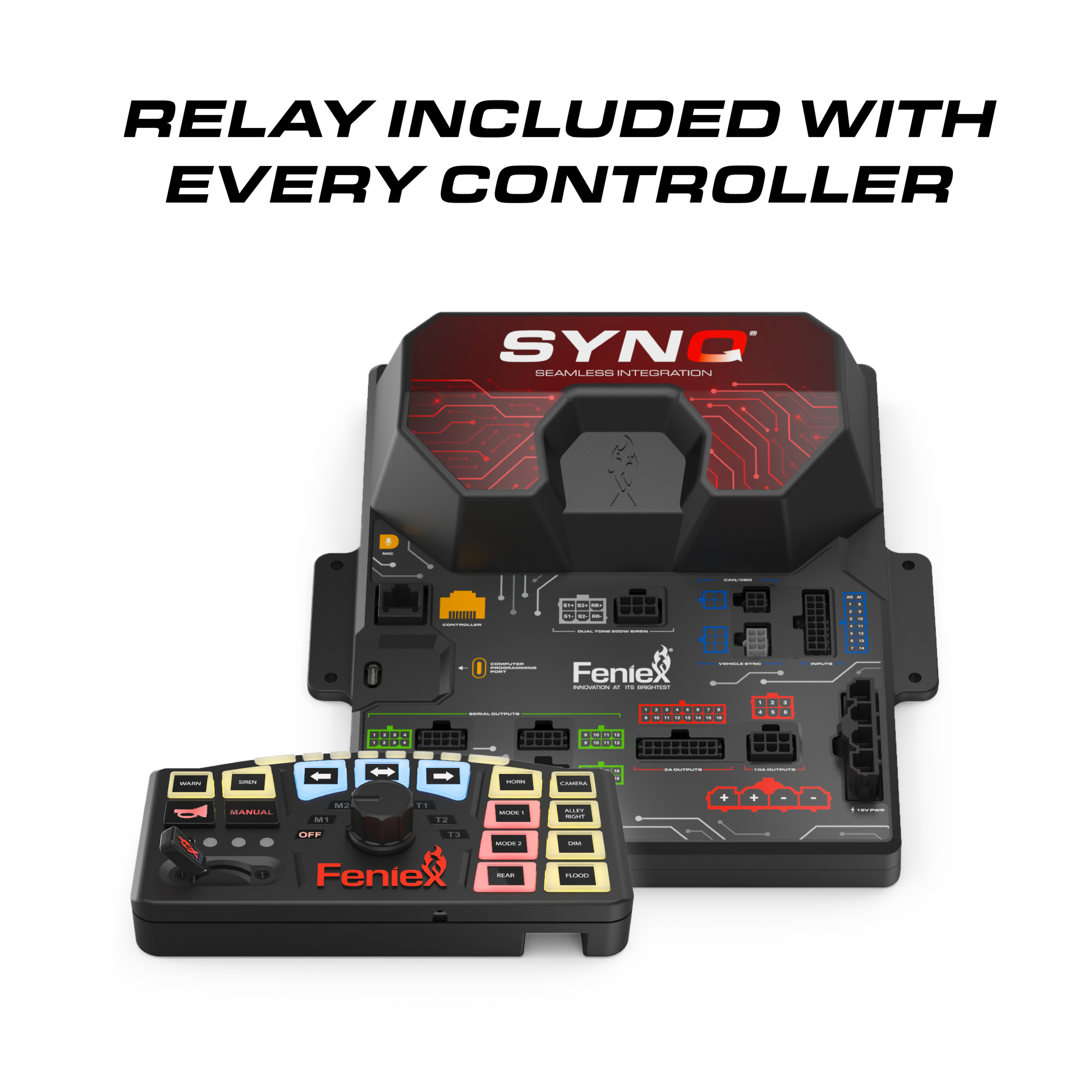

• Includes SynQ-R Controller, SynQ Relay, & 4x Label Sheets

• Supports Up to 96 Q Serial Lights or 16 Quantum 2.0 Products

• Syncs All Quantum and Q Serial Products



SPECIFICATIONS

• Dimensions (Controller): 6.8” x 1.6” x 3.5”

• Dimensions (Relay): 7.25” x 8.75" x 2.44”

• Input Voltage: 12-18VDC

• Standby Current: 0.35 Amps
