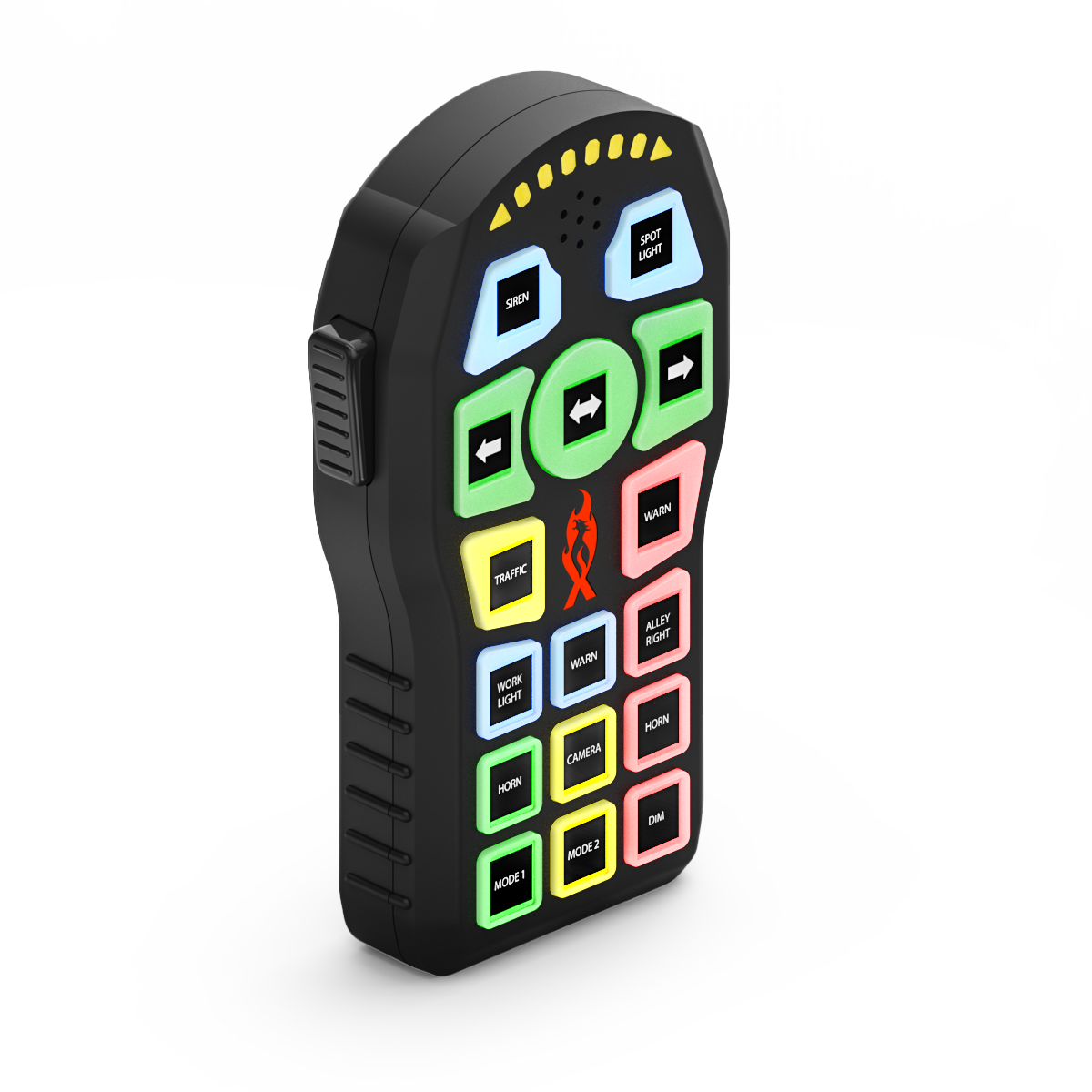

SynQ -H

FEATURES

• 16 Programmable Buttons

• 5 LED Button Color Options

• Standardized Button Size

• 4 Button Style Configurations: Timer, Toggle, Multi-Press, and Momentary

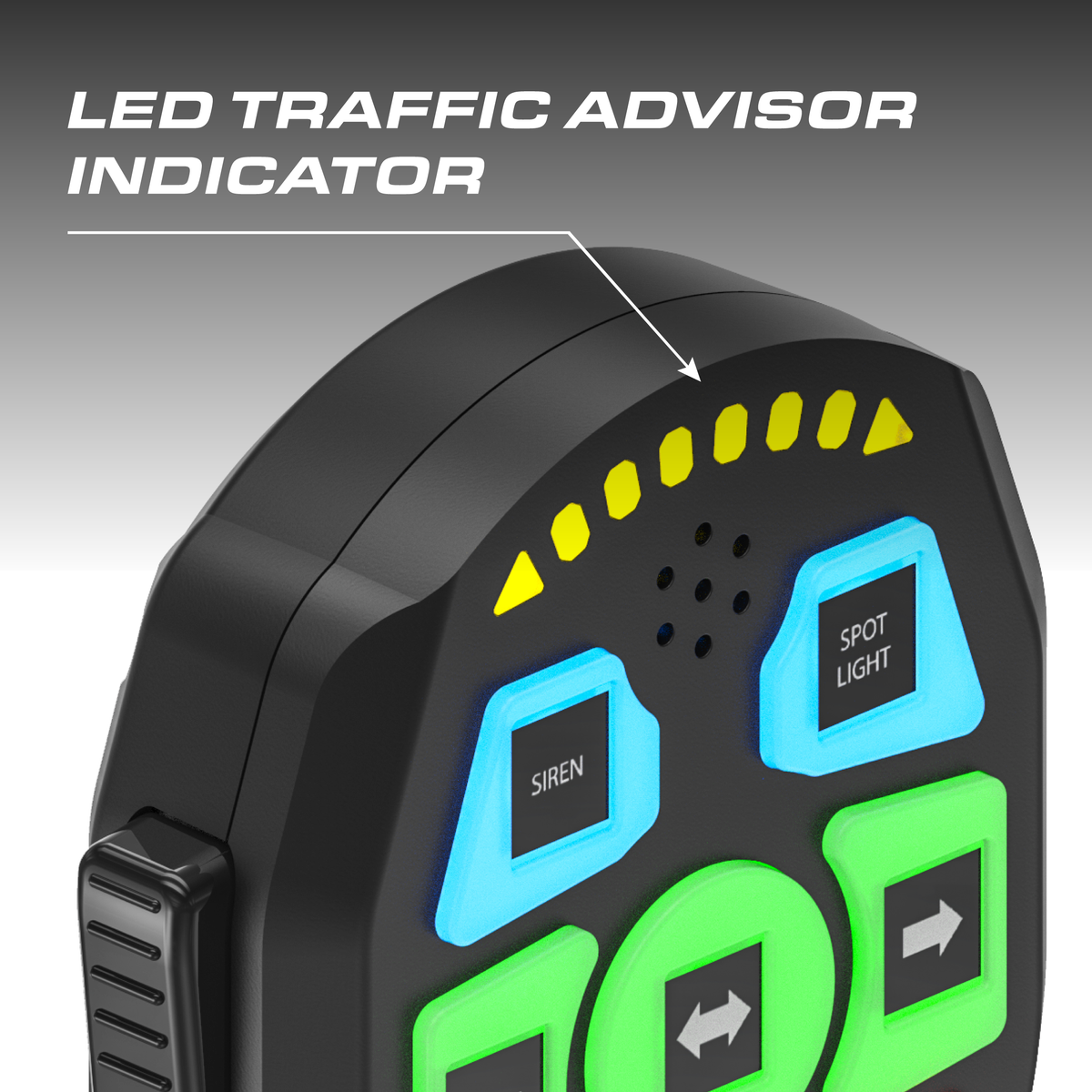

• 8 LED Programmable Traffic Advisor Indicators

• 15+ Programmable Siren Tones

• 20+ Audio Commands

• 200W Dual-Tone Siren

• Horn Ring, Park-Kill, Hands-Free, & Radio Rebroadcast

• PC Programmable

• Firmware Upgradable

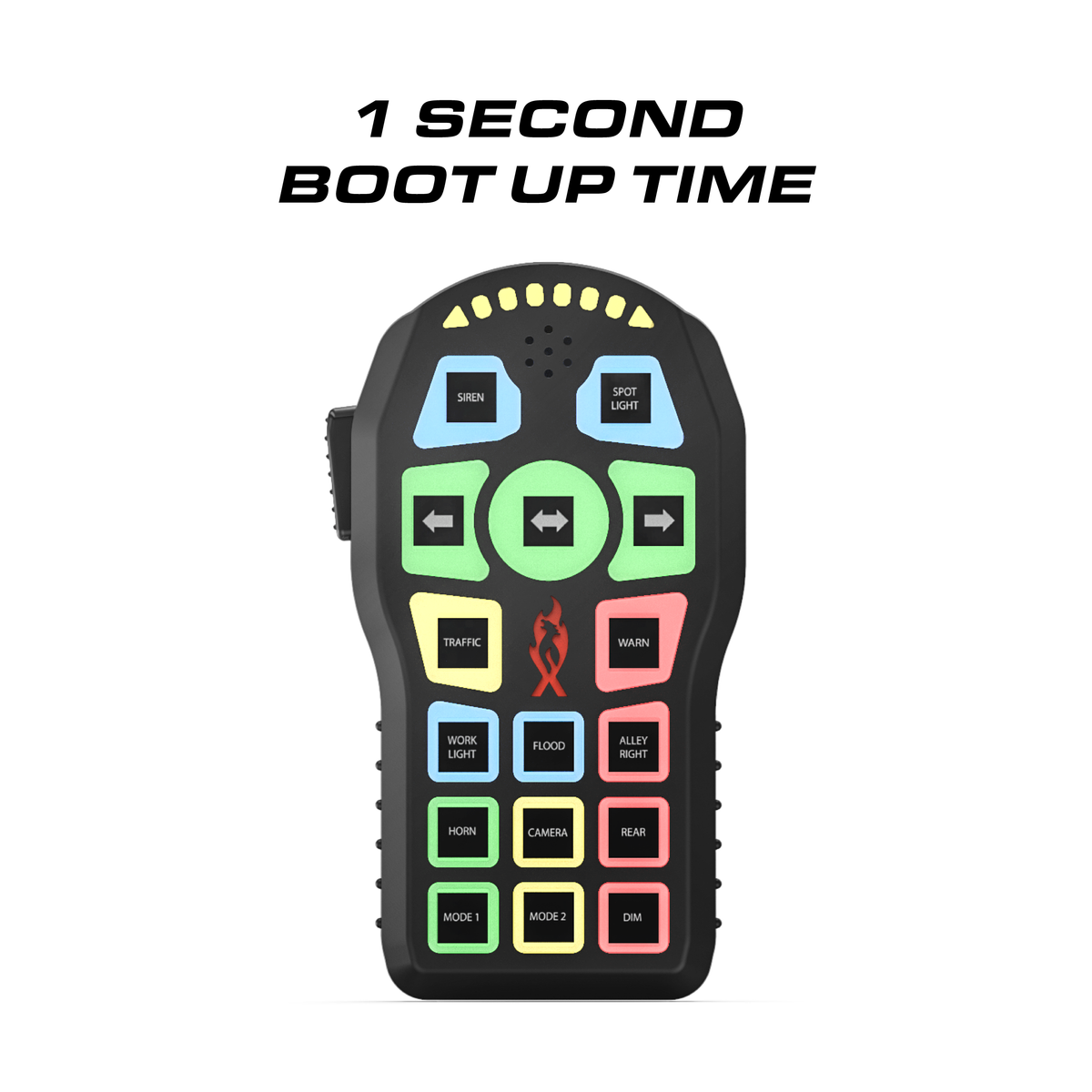

• 1 sec. Boot Up Time

• 12 Low Current Positive Outputs

• 6 High Current Positive Outputs

• 4 Low Current Ground Outputs

• 15ft Wire Harness From Controller to Relay

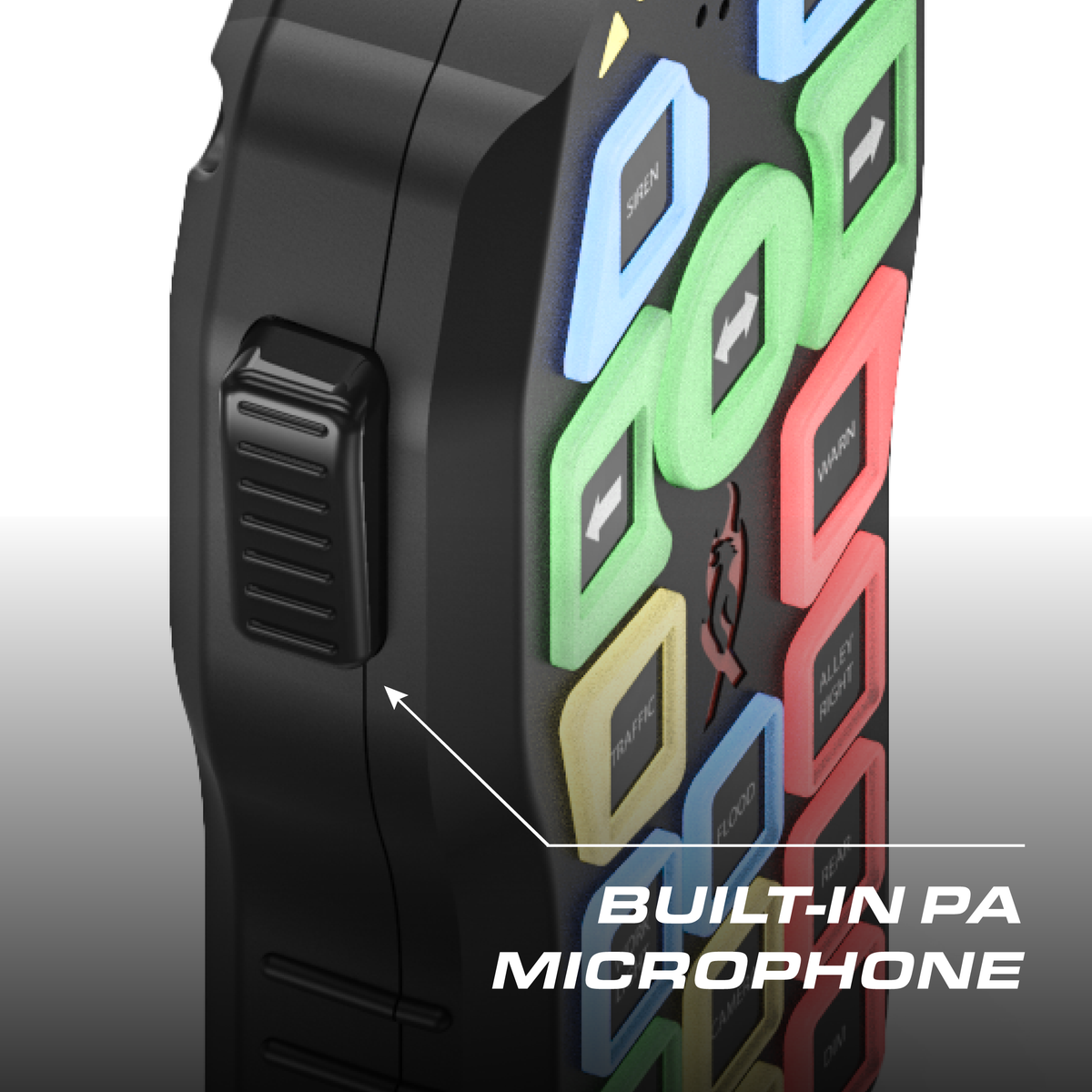

• Built-in PA Mic

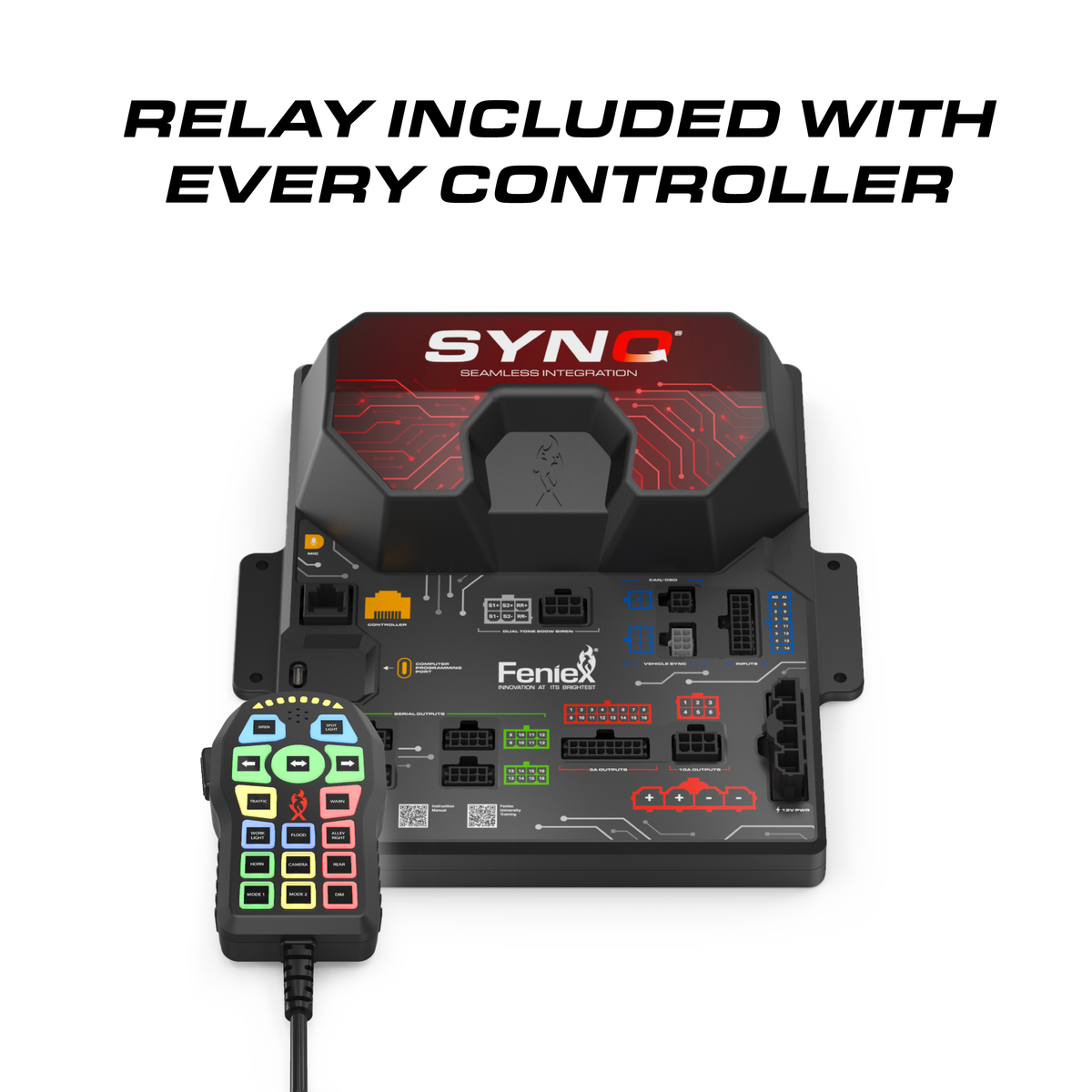

• Includes SynQ-H Controller, SynQ Relay, & 4x Label Sheets

• Supports Up to 96 Q Serial Lights or 16 Quantum 2.0 Products

• Syncs All Quantum and Q Serial Products

SPECIFICATIONS

• Dimensions (Controller): 3” x 1.25” x 5.25”

• Dimensions (Relay): 7.25” x 8.75" x 2.44”

• Input Voltage: 12-18VDC

• Standby Current: 0.35 Amps

• Total Max Current: 115 Amps

• Low Current Output Current Rating: 3 Amps
